Cleaning robot for building curtain wall
Robot Cleaning Facade Pressure Washer System" SERBOT I"
The SERBOT I™ High Pressure Window Washing System is available in standard model with cleaning paths of 4ft (1.2M). This automated window washing system cleans a high-rise building's windows and exterior using high pressure water to "scrub" the surface from a distance of up to three feet; similar to touchless carwash technology. It is ideal for cleaning buildings with irregular window offsets, curves, recesses, overhangs, protrusions, inset glass, asymmetrical frames or other architectural features that make traditional cleaning methods difficult, if not impossible.

What are you getting:
More Cleans
Chemical-Free
Super-Fast ROI
Remote Controlled
Cleans Faster
Less Risk
Money Saved
More Cleans per Year
Environmentally Friendly
Tenant Privacy
Safe



Single SERBOT I ADVANCED PACKAGE includes:
Superior heavy duty PVC SERBOT shell with 4 ft cleaning path
Water spinner bar with 2 turbo nozzles
"Lip" brush on outside of SERBOT shell to minimize overspray
Rear mounted water pressure gauge
Waste water evacuation tube on bottom of SERBOT
Regulator valve to control and conserve water consumption
Deflector "fins" mounted on top and bottom of SERBOT shell to guide machine over protrusions
Rear mounted guideline rack to keep SERBOT against building
Integrated transport/ballast cart with manual winches to tighten guidelines
150 lbs of weight for transport/ballast cart
2x600 ft of high tension, nylon guideline
50 Hz or 60 Hz, 115/220 volt hoist with 600 ft of 3/16 inch galvanized wire rope
Lifting shackle and cable support grip
2 wind stabilizer arms with foam ends to protect building

18 inch fan mounted on back rack to keep unit against building plus 600 ft. electrical cable (for building 25 stories and higher)
5 ft, 8 ft or 10 ft high roof top outrigger with counter weights
Rolling parapet wall clamp outrigger
3,000 p.s.i. 3.5 GPM water pump cart plus 600 ft of high pressure hose
R.O./D.I. water filtration unit for "spot free" windows; 7.8 GPM
Rolling parapet wall outrigger
7.8 GPM water pump cart plus 600 ft of high pressure hose
1 year parts warranty
1 month of training
A set of drawings


Additional equipment:
A set of components and tools

SERBOT I specification

	English	Metric
Water Pressure	900 - 1200 psi	6.2-8.2 MPa
Water Consumption	3.5 GPM	13.2 LPM
Speed	18-25 ft/min	0.1-0.13 m/s
Number of Nozzles	2	2
Voltage	220/230 V	220/230 V
Circuit Breaker Size	60 amps (a)	60 amps (a)
Frequency	50 or 60 Hz	50 or 60 Hz
Weight/Mass	140 lbs	63.6 kg

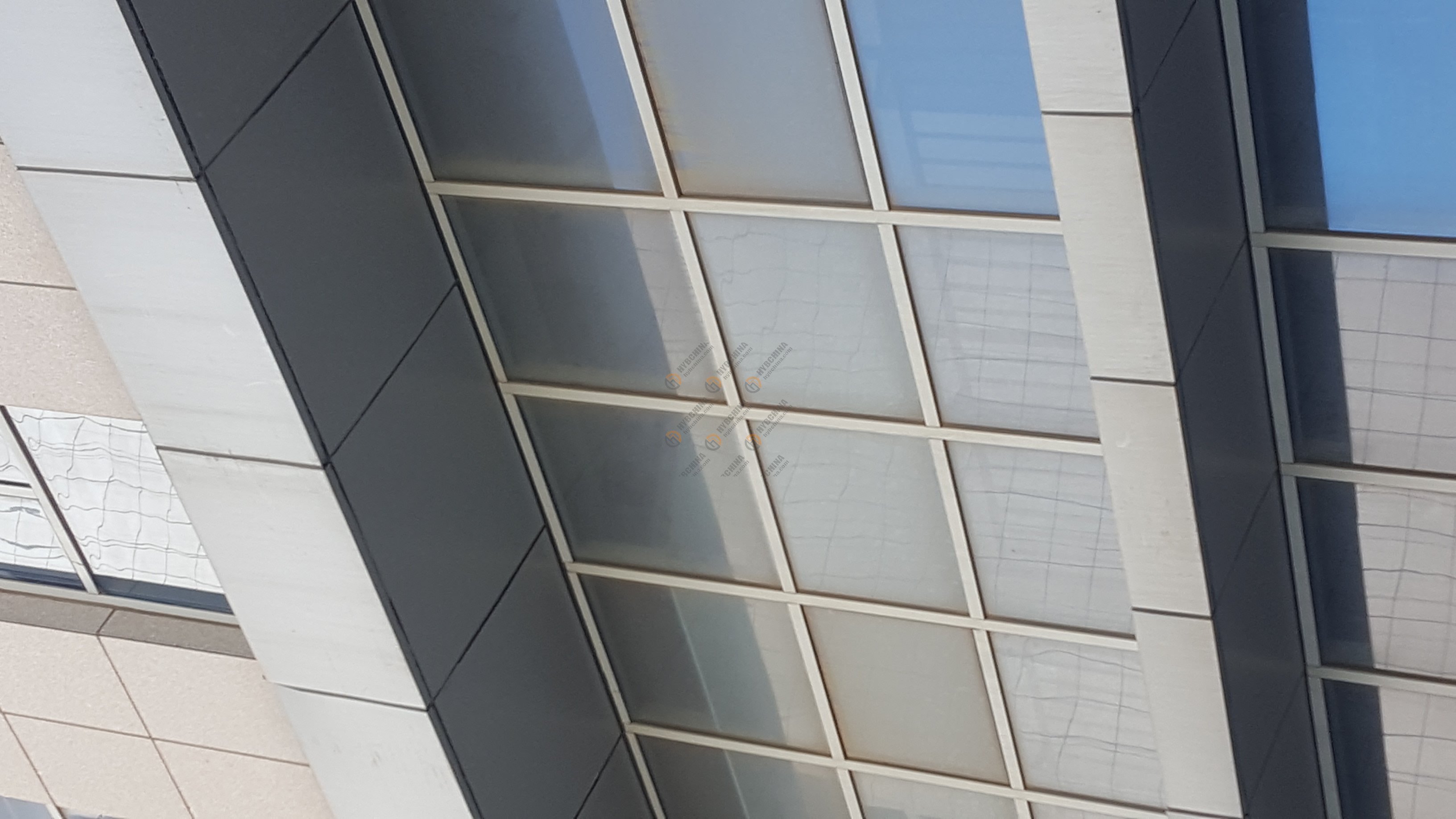

Before cleaning:

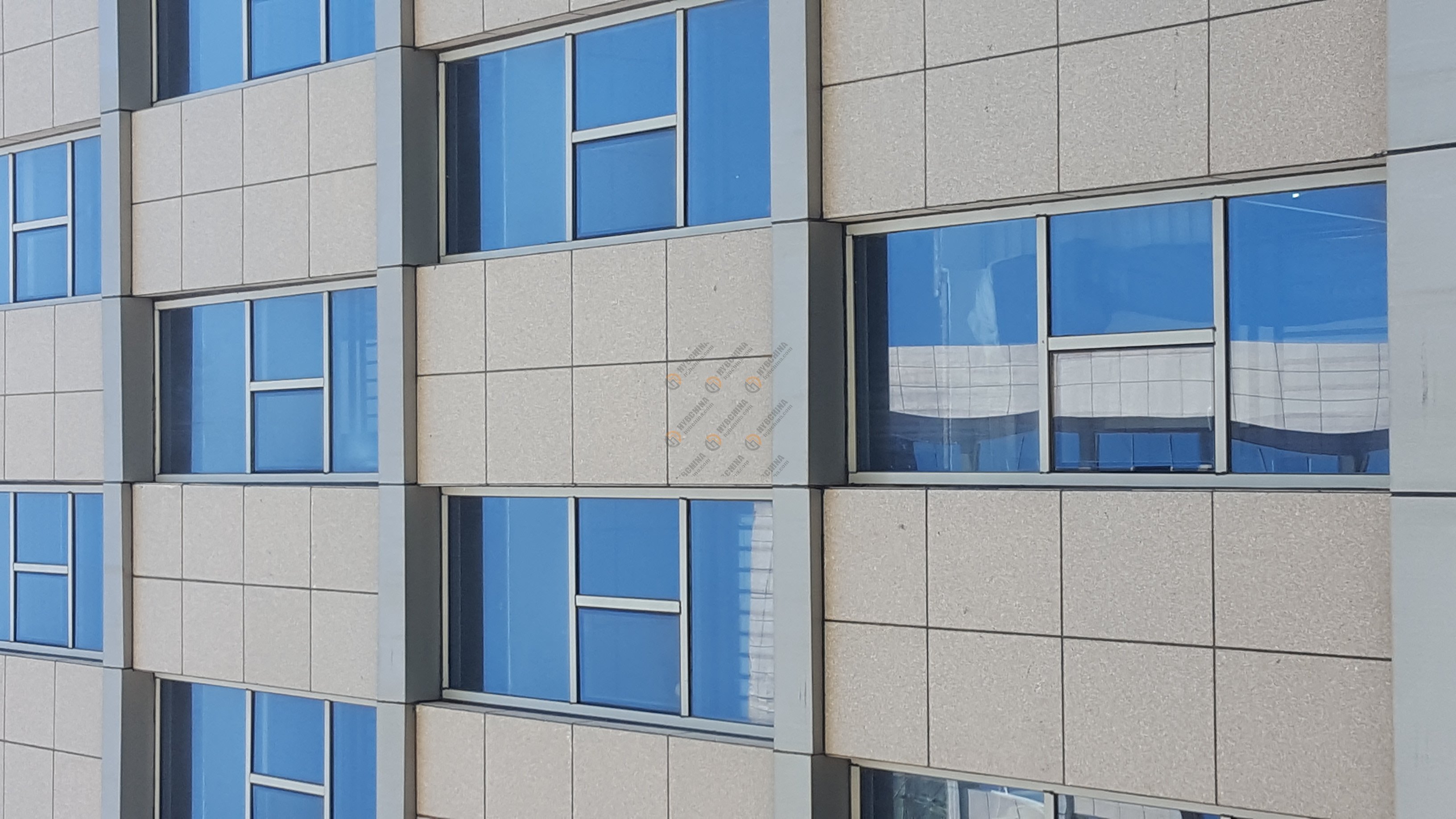

After clening
