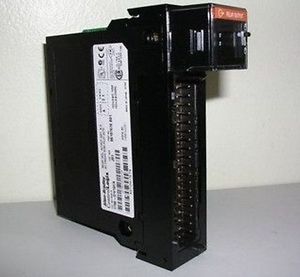

 Fasttobuy: 1756-L63/B Allen-Bradley PLC 1756 ControlLogix Controller Processor 8MKbyte Memory New



The ControlLogix? controller provides a scalable controller solution that is capable of addressing a large amount of I/O points. The ControlLogix controller can be placed into any slot of a ControlLogix I/O chassis and multiple controllers can be installed in the same chassis.

ControlLogix controllers can monitor and control I/O across the ControlLogix backplane, as well as over network links.

To provide communication for a ControlLogix controller, install the appropriate communication interface module into the chassis.

Feature

Feature

1756-L61, 1756-L62, 1756-L63, L63XT, 1756-L64, 1756-L65

Controller tasks

? 32 tasks

? 100 programs/task

? Event tasks: all event triggers

Built-in communication ports

1 port RS-232 serial

Communication options

? EtherNet/IP

? ControlNet

? DeviceNet

? Data Highway Plus

? Remote I/O

? SynchLink

? Third-party process and device networks

Serial port communication

? ASCII

? DF1 full/half-duplex

? DF1 radio modem

? DH-485

? Modbus via logic

Controller connections supported, max

250

Network connections, per network module

? 100 ControlNet (1756-CN2/A)

? 40 ControlNet (1756-CNB/D, 1756-CNB/E)

? 128 ControlNet (1756-CN2/B)

? 256 EtherNet/IP; 128 TCP (1756-EN2x)

? 128 EtherNet/IP; 64 TCP (1756-ENBT)

Controller redundancy

Full support

Integrated motion

? SERCOS interface

? Analog options (encoder input, LDT input, SSI input)

? EtherNet/IP (CIP Motion)

Programming languages

? Relay ladder

? Structured text

? Function block

? SFC

Specification

Attribute

1756-L61

1756-L62

1756-L63

1756-L64

1756-L65

User memory

2MB

4MB.

8MB

16MB

32MB

I/O memory

478KB

Optional nonvolatile memory storage

128 MB (1784-CF128)

Digital I/O, max

128,000

Analog I/O, max

4000

Total I/O, max

128,000

Replacement battery

Series A: 1756-BA1, 1756-BATM, 1756-BATA

Series B: 1756-BA2

1756-BA2 (0.50 g Lithium)

Current draw @ 5.1V DC

1200 mA

Current draw @ 24V DC

14 mA

Power dissipation

3.5 W

Thermal dissipation

11.9 BTU/hr

Isolation voltage

30V (continuous), basic insulation type, RS-232 to system

Type tested at 720V DC for 60 s

Serial cables

1756-CP3 or 1747-CP3, right angle connector to controller, straight to serial port, 3 m (9.84 ft)

Weight, approx

Series A: 0.32 kg, (0.71 lb)

Series B: 0.35 kg, (0.78 lb)

Slot width

1

Slot width

Chassis-based, any slot

Chassis

1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17

Power supply, standard

1756-PA72, 1756-PA75, 1756-PB72, 1756-PB75

Power supply, redundant

1756-PA75R, 1756-PB75R, 1756-PSCA2

Wire category

2 - on RS-232 port

North American temperature code

T4A

Enclosure type rating

None (open-style)
