New Norgren Exhaust Valve 24VDC 2W Part P74F 6gm PFN
New Norgren Exhaust Valve 24VDC 2W Part P74F 6gm PFN
服务费用:物流费 物流费 物流费 调试安装费
发货时间:24小时(有货状态)
点击定制确认订单支付费用24小时发货

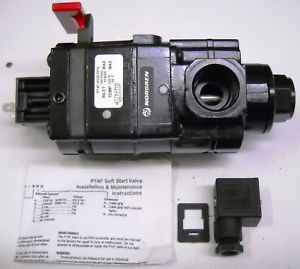

New Norgren Series 74 Soft Start,Dump Valve/Exhaust Valve.
Part Number: P74F-6GM-PFN
Part Number Break Down: P74F = Series. 6GM = Port Size(3/4"), Thread Form(ISO G Parallel), Operator(CNOMO Solenoid plus Lockout). PFN = Solenoid Override(Non-Locking Shrouded Push Button), Solenoid Operator(24VDC 2W), Connector(No Connector).
Specifications/Information: Valve Type: 3-way, normally closed, soft start with optional lockout slide. Fluid: Filtered and lubricated Compressed air. Main Valve Maximum Inlet Pressure: 17bar (250psig) but must not exceed solenoid rating when solenoid operator in use. Minimum Inlet Pressure: 3bar (44psig). Operating Temperatures: -20° to +80°C (0 to 175°F) but must not exceed solenoid rating when solenoid operator in use. Air Supply Must Be Dry Enough to Avoid Ice Formation at Temperatures Below 2°C (35°F). Air Operator Pilot Supply Inlet Pressure Range: Equal to or Greater Than The Main Valve Pressure, but Not Less Than 3bar (44psig) and not Greater Than 17bar (250psig).
New, In Generic Unmarked Packaging. Open Box. Includes Installation and Maintenance Instructions, Connector Adapter and Rubber Gasket.
