this device is mainly used for industrial use , if you have industrial device with old Monitor , but the monitor is already broken , then what is the best way to get the industrial device to work ? replace the new system ? NO!! the industrial device cost is thousands of Dollars at least , you just need to purchase this and then connect to LCD or VGA device , the problem would be solved !! with only 2 hundred and a little more dollars!!
we will only ship by DHL or UPS for this item !! so usually you wil get your order within 3~5 work days!!
Description 8219- CGA, EGA ,MDA, RGB, RGBSOG, RBGHV ,RGBS ,YPbPr to x-VGA PCB/converter.
Widely used in Siemens SIMATIC S5 6AV1242-0AB10 RGB monitor repaired or replace,CGA Monitor Replacement,EGA Monitor Replacement,Monochrome MDA Monitor Replacement, Mitsubishi CNC Monitors replacement,Siemens industrial monitors replacement,num 760 monitor replacement etc.

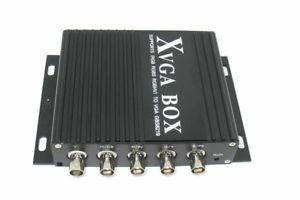

Based on the GBS 8218(XRGB BOX), newly released XVGA BOX(RGB,MDA,CGA,EGA to VGA Converter) was launched of an innovative industrial Video Converter, GBS 8219 video converter of industrial fully automated operation, be able to convert all Rgbhv, Rgbs, Rgb, MDA,CGA,EGA signal to VGA signal, and was widely for various kinds of FHKD, such as Digital Control Machine Tool Display, DCS Display, injection molding machine, analytical instrument, Specialized Display of navigation and import production line, armamentarium, Specialized Display of airport, railway and financial facility, Special size Display, Specialized Display of imported PSP, Bowling and other recreational facilities, etc.
Specifications Input | Signals | MDA/CGA/EGA/RGB/RGBSog/RGBS/RGBHV/YPbPr | Interface | 5BNC ,9 PIN, 3 PIN, 6 PIN, 7 PIN, 14 PIN, 20 PIN, 24 PIN, 25 PIN… | Horizontal Frequency Rate(H) | 12kHz to 40kHz automatically recognized | Parameter | Analog:0.5-1.0 / TTL:3-5V 75 ohm / 750 ohm Scanning:Progressive/Interlaced | Output | Supports | D-15pin standard VGA/SVGA,Resolution:800*600/60HZ, 640*480/60hz | Interface | D-Sub 15 PIN standard VGA port | Power | DC 12V 1.0A / Consumption- 2.0W maximum |
Features (1) YPbPr = YUV (2) Input Horizontal Frequency Rate 12kHz to 40kHz automatically recognized. (3) Support RGB and YPbPr (4) Support Interlaced Scanning and Line by Line Scanning. (5) Support Vertical Resolution from line200 to line 600 automatically recognized. (6) Support variable Horizontal Resolution automatically recognized? (7) Support RGBHV (separate sync) ,RGBS (composite sync), automatically recognized (8) Output resolution: 800*600/60Hz standard VGA or custom-resolution.
User Guide Connection Image: *Note:9 Pin and BNC input signal, youcan choose one of them. Quick reference for 8219 interface:Definition for I/O interface Item | Spec. | Remarks | V | To connect V interface of the input device | Input Channel ? | H/CS | To connect H(CS) interface of the input device | R/Pr | Red signal input/ Pr signal input | G/Y | Green signal input/ YPBPR -Y signal input | B/Pb | Blue Signal input/YPBPR -Pb signal input | RUN | Running Status Indicator | | VIDEO in | To connect 9-pin interface of the input device | Input Channel ? | VGA out | Standardsub-15p VGA female interface | VGA Output | MENU | Use to adjustscreen /programming | | DC12 | Power inputDC12V, 1A | | 9 Pin D-SUB Reference:Definition for Input Channel II PIN | InputSignal | p1(GND) | Connect to the ground | p2(GND) | Connect to the ground | P3(R) | connect R(ed) interface of the input device | P4(G) | connect G(reen) interface of the input device | P5(B) | connect B(lue) interface of the input device | P6 | Undefined(null) | P7 | Undefined(null) | P8(H) | connect H(CS) interface of the input device | P9(V) | connect V interface of the input device | Application for this converter:Definition for Input Channel I BNC | Input Signal | Pb,Y,Pr | YPbPr input signal (right image) Interface: three BNC slot, connected to the corresponding Pb, Y, Pr interface, then Y monochrome port. Figure 4.2 Analog 3BNC (YPBPR) Input. | R,G,B | RGB Sog input signal (right image) Interface: three BNC slot, connected to the corresponding R, G, B slot, then G monochrome port. Figure 4.3 Analog 3BNC (RGB Sog) Input. | R,G,B,S | RGBS CS Composite Sync (right image) Interfaces: 4 BNC slot, connected to the corresponding R, G, B, S I, monochrome then G, S I Figure 4.4 Analog 4BNC (RGBS CS) Input. | R,G,B,H,V | RGBHV separate sync (right image) Interface: 5 BNC port, connected to the corresponding R, G, B, H, V I, monochrome then G, H, V I Figure 4.5 Analog 5BNC (RGBHV) Input. |
Operation Menu: (1)H_Position:Moves the position of the display area on the screen. (2)Width:adjust the width of the menu (3)V_Position:Moves the position of the display area on the screen vertically. (4)Higth:adjust the height of the menu. (5)Phase:adjust the phase of the menu. (6)Style:Signal style, RGB(A) Analog,RGB(D) Digital TTL,YUV? (7)Sync:Signal Sync mode:Separate(HV),Composite(S),SOG,SOY. Automatic recognition of video input sync, or custom of video input sync (8)Resistance:75 ohm or 750 ohm. (9)Scanning:Interlaced or Progressive. (10)Exit&Save:Save and Exit. (11)automatically save and exit:15 seconds, don’t press any key, the menu automatically save and exit. (No signal input, the OSD menu will display) (12)8219 Advance menu:Turn on the 8219 power, Press and hold the Menu buttons simultaneously until the 8219 Advance menu display, about 5 to 8 seconds. (13)Restore the factory defaults for 8219:Turn off the 8219 power, Press and hold the Menu buttons simultaneously until the 8219 power on,about 3 to 5 seconds. Control buttons: Item | Spec. | MENU | press it to enter into OSD menu -click it once to select and click again to exit the current line | + | click it to move the cursor up -click it to add the value | - | click it to move the cursor down -click it to deduct the value |
Using the Screen Adjustment Menu (OSD:On Screen Display) STEP 1 Connected to signal, no display or display color is not correct, adjust the Signal style ( RGB(A) Analog/RGB(D) Digital TTL/YUV). STEP 2 8219 can automatically identify the sync signal, if the display distortions that need to manually adjust the sync signal(Separate(HV)/Composite(S)/SOG,SOY). STEP 3 If the screen shows elongated, and the overflow to the bottom of the screen, choose the scanning mode adjusted: Progressive; or screen display is still only half of the monitor, choose the scanning mode to adjust to: interlaced. STEP 4 Adjust the horizontal position, horizontal size, vertical position, vertical size of the item, adjust the monitor to display properly. STEP 5 Input impedance: Select the correct input impedance. STEP 6 Adjustment the phase until the display clearly. STEP 7 Save and exit
The upgrading replacement for old CNC crt monitor as follows: replaceable model list
Fanuc A61L-0001-0072 A61L-0001-0074 A61L-0001-0076 A61L-0001-0077 A61L-0001-0078 A61L-0001-0079 A61L-0001-0086 A61L-0001-0087 A61L-0001-0090 A61L-0001-0092 A61L-0001-0093 A61L-0001-0094 A61L-0001-0095 A61L-0001-0096 | Mitsubishi C-3240LP C3470 C-5470NS CDT14111B CDT14148B MDT1283B-2A MDT1216 MDT947 MDT947B MDT947B-1A MDT947B-2B MDT962B-1A | Siemens 6FC3988-7AF01 6FC4600-0AR04 6FC4600-0AR50 6FC5103-0AB01 QDM-9WD-110 QDM-9WD-120 QDM-9WD-121 SC-1200 SM0901 576744TA 576745TA | Hitachi C14C-1472DF C14C-1472D1F C-5470YE CD1472D1M CD1472D1M-2 CDT14111B CDT14111B-8A C14C-1472DFA TX1424AD TX1425B TX1450A TX1450AE | GE 44A717111 44A719977 44A719978 44A719979 | Matsushita KF-M7099H TR-9DD1B TR-9DK1 TR-9DK1A TR-9DK1B TR-9DKYC TR-9K1B TX-901AB TR-120S9C TX-1204 TX-1204AC TX-1208AA TX-1404 TX-1404AB TX-1424 TX-1424AB TX-1424AD TX-1425B TX-1450AB TX-1450ABA TX-1450AB5 TX-1450AE | Mazak C-3240 C-3470 C-5470 CD1472D1M CDT-14148B MDT1283-B MDT925PS MDT962B ME12-PDB HM12-PDB 8DSP40 26S14O19L | Heidenhain BC110B BC120 BE211 BE411 | Tatung CD14 CD14JBS CD14JD | Totoku MDT947B-1A MDT947B-2B MDT947B-3A MDT947B-3B MDT1283B | Toshiba D9CM-01A D9MM-11A D9MR-10A D9MR-51B D14CM-01A D14CM-06A D15CM-04A D15CM-06A | Magnetek 1051091000 14531400102 |
