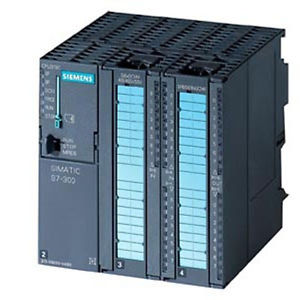

6ES7?313-5BG04-0AB0

Product?version

Hardware?product?version

01

Firmware?version

V3.3

General?information

associated?programming?package

STEP?7?V5.5?+?SP1?or?higher?or?STEP?7?V5.3?+?SP2?or?higher?with?HSP?203

Supply?voltage

24?V?DC

Yes

Input?current

Current?consumption?(rated?value)

650 mA

Current?consumption?(in?no-load?operation),?typ.

150 mA

Inrush?current,?typ.

5 A

I2t

0.7 A2·s

Power?losses

Power?loss,?typ.

12 W

Memory

Work?memory

• integrated

128 Kibyte

• expandable

No

• Size?of?retentive?memory?for?retentive?data?blocks

64 Kibyte

Load?memory

• pluggable?(MMC)

Yes

• pluggable?(MMC),?max.

8 Mbyte

• Data?management?on?MMC?(after?last?programming),?min.

10 a

Backup

• present

Yes;?Guaranteed?by?MMC?(maintenance-free)

• without?battery

Yes;?Program?and?data

CPU-blocks

Number?of?blocks?(total)

1 024;?(DBs,?FCs,?FBs);?the?maximum?number?of?loadable?blocks?can?be?reduced?by?the?MMC?used.

DB

• Number,?max.

1 024;?Number?range:?1?to?16000

• Size,?max.

64 Kibyte

FB

• Number,?max.

1 024;?Number?range:?0?to?7999

• Size,?max.

64 Kibyte

FC

• Number,?max.

1 024;?Number?range:?0?to?7999

• Size,?max.

64 Kibyte

OB

• Size,?max.

64 Kibyte

Nesting?depth

• per?priority?class

16

• additional?within?an?error?OB

4

CPU?processing?times

for?bit?operations,?min.

0.07 μs

for?word?operations,?min.

0.15 μs

for?fixed?point?arithmetic,?min.

0.2 μs

for?floating?point?arithmetic,?min.

0.72 μs

Counters,?timers?and?their?retentivity

S7?counter

• Number

256

• Retentivity

• adjustable

Yes

• lower?limit

0

• upper?limit

255

• preset

Z?0?to?Z?7

• Counting?range

• lower?limit

0

• upper?limit

999

IEC?counter

• present

Yes

• Type

SFB

• Number

Unlimited?(limited?only?by?RAM?capacity)

S7?times

• Number

256

• Retentivity

• adjustable

Yes

• lower?limit

0

• upper?limit

255

• preset

No?retentivity

• Time?range

• lower?limit

10 ms

• upper?limit

9 990 s

IEC?timer

• present

Yes

• Type

SFB

• Number

Unlimited?(limited?only?by?RAM?capacity)

Data?areas?and?their?retentivity

retentive?data?area,?total

All,?max.?64?KB

Flag

• Number,?max.

256 byte

• Retentivity?available

Yes;?MB?0?to?MB?255

• Retentivity?preset

MB?0?to?MB?15

• Number?of?clock?memories

8;?1?memory?byte

Data?blocks

• Retentivity?adjustable

Yes;?via?non-retain?property?on?DB

• Retentivity?preset

Yes

Local?data

• per?priority?class,?max.

32 Kibyte;?Max.?2048?bytes?per?block

Address?area

I/O?address?area

• Inputs

1 024 byte

• Outputs

1 024 byte

• of?which,?distributed

• Inputs

none

• Outputs

none

Process?image

• Inputs,?adjustable

1 024 byte

• Outputs,?adjustable

1 024 byte

• Inputs,?default

128 byte

• Outputs,?default

128 byte

• Default?addresses?of?the?integrated?channels

• Digital?inputs

124.0?to?126.7

• Digital?outputs

124.0?to?125.7

• Analog?inputs

752?to?761

• Analog?outputs

752?to?755

Digital?channels

• integrated?channels?(DI)

24

• integrated?channels?(DO)

16

• Inputs

1 016

• Outputs

1 008

• Inputs,?of?which?central

1 016

• Outputs,?of?which?central

1 008

Analog?channels

• Integrated?channels?(AI)

5;?4?x?current/voltage,?1?x?resistance

• Integrated?channels?(AO)

2

• Inputs

253

• Outputs

250

• Inputs,?of?which?central

253

• Outputs,?of?which?central

250

Hardware?configuration

Racks,?max.

4

Modules?per?rack,?max.

8;?In?rack?3?max.?7

Expansion?devices,?max.

3

Number?of?DP?masters

• integrated

none

• via?CP

4

Number?of?operable?FMs?and?CPs?(recommended)

• FM

8

• CP,?point-to-point

8

• CP,?LAN

6

Time?of?day

Clock

• Hardware?clock?(real-time?clock)

Yes

• battery-backed?and?synchronizable

Yes

• Deviation?per?day,?max.

10 s;?Typ.:?2?s

• Backup?time

6 wk;?At?40?°C?ambient?temperature

• Behavior?of?the?clock?following?POWER-ON

Clock?continues?running?after?POWER?OFF

• Behavior?of?the?clock?following?expiry?of?backup?period

Clock?continues?to?run?with?the?time?at?which?the?power?failure?occurred

Operating?hours?counter

• Number

1

• Number/Number?range

0

• Range?of?values

0?to?2^31?hours?(when?using?SFC?101)

• Granularity

1?hour

• retentive

Yes;?Must?be?restarted?at?each?restart

Clock?synchronization

• supported

Yes

• to?MPI,?master

Yes

• to?MPI,?slave

Yes

• in?AS,?master

Yes

• in?AS,?slave

No

Digital?inputs

Number?of?digital?inputs

24

• of?which,?inputs?usable?for?technological?functions

12

Number?of?simultaneously?controllable?inputs

• horizontal?installation

• up?to?40?°C,?max.

24

• up?to?60?°C,?max.

12

• vertical?installation

• up?to?40?°C,?max.

12

• Technological?functions

• shielded,?max.

100 m;?at?maximum?count?frequency

• Unshielded,?max.

not?allowed

• Standard?DI

• shielded,?max.

1 000 m

• Unshielded,?max.

600 m

Input?characteristic?curve?acc.?to?IEC?1131,?Type?1

Yes

Input?voltage

• Rated?value,?DC

24 V

• for?signal?"0"

-3?to?+5?V

• for?signal?"1"

15?to?30?V

Input?current

• for?signal?"1",?typ.

8 mA

Input?delay?(for?rated?value?of?input?voltage)

• for?standard?inputs

• Parameterizable

Yes;?0.1?/?0.3?/ ?3?/?15?ms?(You?can?reconfigure?the?input?delay?of?the?standard?inputs? during?program?runtime.?Please?note?that?under?certain?circumstances? your?newly?set?filter?time?may?not?be?effective?until?the?next?filter? cycle.)

• Rated?value

3 ms

• for?counter/technological?functions

• at?"0"?to?"1",?max.

16 μs;?Minimum?pulse?width/minimum?pause?between?pulses?at?maximum?counting?frequency

Cable?length

• Cable?length,?shielded,?max.

1 000 m;?100?m?for?technological?functions

• Cable?length?unshielded,?max.

600 m;?For?technological?functions:?No

Digital?outputs

Number?of?digital?outputs

16

• of?which?high-speed?outputs

4;?Notice:?You?cannot?connect?the?fast?outputs?of?your?CPU?in?parallel

Short-circuit?protection

Yes;?Clocked?electronically

• Response?threshold,?typ.

1?A

Limitation?of?inductive?shutdown?voltage?to

L+?(-48?V)

Lamp?load,?max.

5 W

Controlling?a?digital?input

Yes

Output?voltage

• for?signal?"1",?min.

L+?(-0.8?V)

Output?current

• for?signal?"1"?rated?value

500 mA

• for?signal?"1"?permissible?range,?min.

5 mA

• for?signal?"1"?permissible?range,?max.

0.6 A

• for?signal?"1"?minimum?load?current

5 mA

• for?signal?"0"?residual?current,?max.

0.5 mA

Parallel?switching?of?2?outputs

• for?increased?power

No

• for?redundant?control?of?a?load

Yes

Switching?frequency

• with?resistive?load,?max.

100 Hz

• with?inductive?load,?max.

0.5 Hz

• on?lamp?load,?max.

100 Hz

• of?the?pulse?outputs,?with?resistive?load,?max.

2.5 kHz

Aggregate?current?of?outputs?(per?group)

• horizontal?installation

• up?to?40?°C,?max.

3 A

• up?to?60?°C,?max.

2 A

• vertical?installation

• up?to?40?°C,?max.

2 A

Load?resistance?range

• lower?limit

48 Ω

• upper?limit

4 kΩ

Cable?length

• Cable?length,?shielded,?max.

1 000 m

• Cable?length?unshielded,?max.

600 m

Analog?inputs

Number?of?analog?inputs?for?voltage/current?measurement

4

Number?of?analog?inputs?for?resistance/temperature?measurement

1

Cable?length,?shielded,?max.

100 m

permissible?input?frequency?for?current?input?(destruction?limit),?max.

5 V;?Permanent

permissible?input?voltage?for?voltage?input?(destruction?limit),?max.

30 V;?Permanent

permissible?input?current?for?voltage?input?(destruction?limit),?max.

0.5 mA;?Permanent

permissible?input?current?for?current?input?(destruction?limit),?max.

50 mA;?Permanent

Technical?unit?for?temperature?measurement?adjustable

Yes;?Degrees?Celsius?/?degrees?Fahrenheit?/?Kelvin

Input?ranges

• Voltage

Yes;?±10?V?/?100?kΩ;?0?V?to?10?V?/?100?kΩ

• Current

Yes;?±20?mA?/?100?Ω;?0?mA?to?20?mA?/?100?Ω;?4?mA?to?20?mA?/?100?Ω

• Resistance?thermometer

Yes;?Pt?100?/?10?MΩ

• Resistance

Yes;?0?Ω?to?600?Ω?/?10?MΩ

Input?ranges?(rated?values),?voltages

• 0?to?+10?V

Yes

• Input?resistance?(0?to?10?V)

100 kΩ

Input?ranges?(rated?values),?currents

• 0?to?20?mA

Yes

• Input?resistance?(0?to?20?mA)

100 Ω

• -20?to?+20?mA

Yes

• Input?resistance?(-20?to?+20?mA)

100 Ω

• 4?to?20?mA

Yes

• Input?resistance?(4?to?20?mA)

100 Ω

Input?ranges?(rated?values),?resistance?thermometers

• Pt?100

Yes

• Input?resistance?(Pt?100)

10 MΩ

Input?ranges?(rated?values),?resistors

• No-Load?voltage,?typ.

3.3 V

• Measured?current,?typ.

1.25?mA

• 0?to?600?ohms

Yes

• Input?resistance?(0?to?600?ohms)

10 MΩ

Resistance?thermometer?(RTD)

• Characteristic?linearization

• for?resistance?thermometer

Pt?100

Characteristic?linearization

• Parameterizable

Yes;?by?software

Temperature?compensation

• Parameterizable

No

Analog?outputs

Number?of?analog?outputs

2

Cable?length,?shielded,?max.

200 m

Voltage?output,?short-circuit?protection

Yes

Voltage?output,?short-circuit?current,?max.

55 mA

Current?output,?no-load?voltage,?max.

14 V

Output?ranges,?voltage

• 0?to?10?V

Yes

• -10?to?+10?V

Yes

Output?ranges,?current

• 0?to?20?mA

Yes

• -20?to?+20?mA

Yes

• 4?to?20?mA

Yes

Connection?of?actuators

• for?voltage?output?2-conductor?connection

Yes;?Without?compensation?of?the?line?resistances

• for?voltage?output?4-conductor?connection

No

• for?current?output?2-conductor?connection

Yes

Load?impedance?(in?rated?range?of?output)

• with?voltage?outputs,?min.

1 kΩ

• with?voltage?outputs,?capacitive?load,?max.

0.1 μF

• with?current?outputs,?max.

300 Ω

• with?current?outputs,?inductive?load,?max.

0.1 mH

Destruction?limits?against?externally?applied?voltages?and?currents

• Voltages?at?the?outputs?towards?MANA

16 V;?Permanent

• Current,?max.

50 mA;?Permanent

Analog?value?creation

Measurement?principle

Actual?value?encryption?(successive?approximation)

Integrations?and?conversion?time/?resolution?per?channel

• Resolution?with?overrange?(bit?including?sign),?max.

12 bit

• Integration?time,?parameterizable

Yes;?16.6?/?20?ms

• permissible?input?frequency,?max.

400 Hz

• Interference?voltage?suppression?for?interference?frequency?f1?in?Hz

60?/?50?Hz

• Conversion?time?(per?channel)

1 ms

• Time?constant?of?the?input?filter

0.38 ms

• Basic?execution?time?of?the?module?(all?channels?released)

1 ms

Settling?time

• for?resistive?load

0.6 ms

• for?capacitive?load

1 ms

• for?inductive?load

0.5 ms

Encoder

Connection?of?signal?encoders

• for?voltage?measurement

Yes

• for?current?measurement?as?2-wire?transducer

Yes;?with?external?supply

• for?current?measurement?as?4-wire?transducer

Yes

• for?resistance?measurement?with?2-conductor?connection

Yes;?Without?compensation?of?the?line?resistances

• for?resistance?measurement?with?3-conductor?connection

No

• for?resistance?measurement?with?4-conductor?connection

No

Connectable?encoders

• 2-wire?BEROS

Yes

• permissible?quiescent?current?(2-wire?BEROS),?max.

1.5 mA

Errors/accuracies

Temperature?error?(relative?to?input?area)

+/-?0,006?%/K

Crosstalk?between?the?inputs,?min.

60 dB

Repeat?accuracy?in?settled?status?at?25?°C?(relative?to?input?area)

+/-?0,06?%

Output?ripple?(based?on?output?area,?bandwidth?0?to?50?kHz)

+/-?0,1?%

Linearity?error?(relative?to?output?area)

+/-?0,15?%

Temperature?error?(relative?to?output?area)

+/-?0,01?%/K

Crosstalk?between?the?outputs,?min.

60 dB

Repeat?accuracy?in?settled?status?at?25?°C?(relative?to?output?area)

+/-?0,06?%

Operational?limit?in?overall?temperature?range

• Voltage,?relative?to?input?area

+/-?1?%

• Current,?relative?to?input?area

+/-?1?%

• Impedance,?relative?to?input?area

+/-?1?%

• Voltage,?relative?to?output?area

+/-?1?%

• Current,?relative?to?output?area

+/-?1?%

Basic?error?limit?(operational?limit?at?25?°C)

• Voltage,?relative?to?input?area

+/-?0,8?%;?Linearity?error?+/-?0.06?%

• Current,?relative?to?input?area

+/-?0,8?%;?Linearity?error?+/-?0.06?%

• Impedance,?relative?to?input?area

+/-?0,8?%;?Linearity?error?+/-?0.2%

• Resistance-type?thermometer,?relative?to?input?area

+/-?0,8?%

• Voltage,?relative?to?output?area

+/-?0,8?%

• Current,?relative?to?output?area

+/-?0,8?%

Interference?voltage?suppression?for?f?=?n?x?(fl?+/-?1%),?fl?=?interference?frequency

• Series?mode?interference?(peak?value?of?interference?<?rated?value?of?input?range),?min.

30 dB

• Common?mode?interference,?min.

40 dB

Interfaces

Number?of?USB?interfaces

0

1st?interface

Type?of?interface

Integrated?RS?485?interface

Physics

RS?485

Isolated

No

Power?supply?to?interface?(15?to?30?V?DC),?max.

200 mA

Functionality

• MPI

Yes

• DP?master

No

• DP?slave

No

• Point-to-point?connection

No

MPI

• Services

• PG/OP?communication

Yes

• Routing

No

• Global?data?communication

Yes

• S7?basic?communication

Yes

• S7?communication

Yes;?Only?server,?configured?on?one?side

• S7?communication,?as?client

No;?(but?via?CP?and?loadable?FBs)

• S7?communication,?as?server

Yes

• Transmission?rate,?max.

187.5 kbit/s

Communication?functions

PG/OP?communication

Yes

Data?record?routing

No

Global?data?communication

• supported

Yes

• Number?of?GD?loops,?max.

8

• Number?of?GD?packets,?max.

8

• Number?of?GD?packets,?transmitter,?max.

8

• Number?of?GD?packets,?receiver,?max.

8

• Size?of?GD?packets,?max.

22 byte

• Size?of?GD?packet?(of?which?consistent),?max.

22 byte

S7?basic?communication

• supported

Yes

• User?data?per?job,?max.

76 byte

• User?data?per?job?(of?which?consistent),?max.

76 byte;?76?bytes?(with?X_SEND?or?X_RCV);?64?bytes?(with?X_PUT?or?X_GET?as?server)

S7?communication

• supported

Yes

• as?server

Yes

• as?client

Yes;?Via?CP?and?loadable?FB

• User?data?per?job,?max.

180 byte;?With?PUT/GET

• User?data?per?job?(of?which?consistent),?max.

240 byte;?as?server

S5-compatible?communication

• supported

Yes;?via?CP?and?loadable?FC

Number?of?connections

• overall

8

• usable?for?PG?communication

7

• usable?for?OP?communication

7

• usable?for?S7?basic?communication

4

S7?message?functions

Number?of?login?stations?for?message?functions,?max.

8;?Depending?on?the?configured?connections?for?PG/OP?and?S7?basic?communication

Process?diagnostic?messages

Yes

simultaneously?active?Alarm-S?blocks,?max.

300

Test?commissioning?functions

Status/control

• Status/control?variable

Yes

• Variables

Inputs,?outputs,?memory?bits,?DB,?times,?counters

• Number?of?variables,?max.

30

• of?which?status?variables,?max.

30

• of?which?control?variables,?max.

14

Forcing

• Forcing

Yes

• Force,?variables

Inputs,?outputs

• Number?of?variables,?max.

10

Status?block

Yes;?Up?to?2?simultaneously

Single?step

Yes

Number?of?breakpoints

4

Diagnostic?buffer

• present

Yes

• Number?of?entries,?max.

500

• adjustable

No

• Of?which?powerfail-proof

100;?Only?the?last?100?entries?are?retained

• Number?of?entries?readable?in?RUN,?max.

499

• adjustable

Yes;?From?10?to?499

• preset

10

Integrated?Functions

Number?of?counters

3;?See?"Technological?Functions"?manual

Counter?frequency?(counter)?max.

30 kHz

Frequency?measurement

Yes

Number?of?frequency?meters

3;?up?to?30?kHz?(see?"Technological?Functions"?manual)

controlled?positioning

No

Integrated?function?blocks?(closed-loop?control)

Yes;?PID?controller?(see?"Technological?Functions"?manual)

PID?controller

Yes

Number?of?pulse?outputs

3;?Pulse?width?modulation?up?to?2.5?kHz?(see?"Technological?Functions"?Manual)

Limit?frequency?(pulse)

2.5 kHz

Galvanic?isolation

Galvanic?isolation?digital?inputs

• Galvanic?isolation?digital?inputs

Yes

• between?the?channels

No

• between?the?channels?and?the?backplane?bus

Yes

Galvanic?isolation?digital?outputs

• Galvanic?isolation?digital?outputs

Yes

• between?the?channels

Yes

• between?the?channels,?in?groups?of

8

• between?the?channels?and?the?backplane?bus

Yes

Galvanic?isolation?analog?inputs

• Galvanic?isolation?analog?inputs

Yes;?common?for?analog?I/O

• between?the?channels

No

• between?the?channels?and?the?backplane?bus

Yes

Galvanic?isolation?analog?outputs

• Galvanic?isolation?analog?outputs

Yes;?common?for?analog?I/O

• between?the?channels

No

• between?the?channels?and?the?backplane?bus

Yes

Permissible?potential?difference

between?different?circuits

75?VDC?/?60?VAC

between?inputs?and?MANA?(UCM)

8.0?V?DC

between?MANA?and?M?internally?(UISO)

75?VDC?/?60?VAC

Isolation

Isolation?checked?with

600?V?DC

Ambient?conditions

Operating?temperature

• Min.

0 °C

• max.

60 °C

Configuration

Configuration?software

• STEP?7

Yes;?STEP?7?V5.5?+?SP1?or?higher?or?STEP?7?V5.3?+?SP2?or?higher?with?HSP?203

• STEP?7?Lite

No

programming

• Programming?language

• LAD

Yes

• FBD

Yes

• STL

Yes

• SCL

Yes

• CFC

Yes

• GRAPH

Yes

• HiGraph?

Yes

• Command?set

see?instruction?list

• Nesting?levels

8

Know-how?protection

• User?program?protection/password?protection

Yes

• Block?encryption

Yes;?With?S7?block?Privacy

Dimensions?and?weight

Dimensions

• Width

120 mm

• Height

125 mm

• Depth

130 mm
