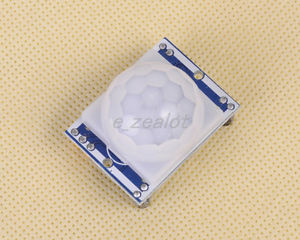

HC-SR501 Infrared Pyroelectric Human Sensor Module

1. Electrical parameters

• Product Type: HC--SR501 Body Sensor Module
• Operating voltage range: DC 4.5-20V
• Quiescent Current: <50ua
• Level output: High 3.3 V /Low 0V
• Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
• Delay time: 5-200S(adjustable) the range is (0.xx second to tens of second)
• Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
• Board Dimensions: 32mm*24mm
• angle Sensor: <100 ? cone angle
• Operation Temp: -15-+70 degrees
• Lens size sensor: Diameter:23mm(Default)

2. Features

• The automatic sensor: to enter the sensor output range is high, people leave the sensor range of the automatic
• delay off high, output low
• The photosensitive control (optional, factory is not set) may set the photosensitive control during the day or light intensity without induction
• The temperature compensation (optional, factory is not set): In the summer when the ambient temperature rises to 30 ~ 32?, slightly shorter detection range, temperature compensation can be used as a performance compensation
• Two trigger mode: (can be selected by jumpers)

a, can not repeat the trigger: the sensor output high, the delay time is over, the output will automaticall:+86-0535-6849126

---
