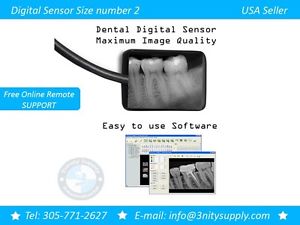

Digital Sensor Size #2

FREE UNLIMITED ONLINE REMOTE SUPPORT

OUR OFFICE WORKING HOURS 9am - 5pm EASTERN TIME

MONDAY - FRIDAY

Digital x-ray system substantially reduces the time of taking x-ray pictures for dentist, avoiding complicated film development, save money on film, and chemical substances.

Imaging software greatly increases the efficiency of image management for dentist. Taking pictures at fastest speed, and keeping it at safest status.

In future patient information would be transferred over the internet in a digital form.
Overview: The HDR intraoral sensors deliver maximum image quality with minimum exposure to radiation. Our sensors are offered in two sizes this advertisement is for #2 size sensor. Key features include simple USB plug and play connectivity; 4,095 shades of gray that provide depth and density; and 16-bit image acquisition. Each sensor consists of a matrix of silicon photodiodes on 22.5 x-ray photons to visible light sensed by the silicon photodiodes. Have an ergonomic shape with rounded edges and are housed in a rugged, thermoplastic enclosure to protect the sensor from everyday handling and cleaning.
Key Features:

Fast image acquisition and lower radiation to the patient

Simple USB 2.0 plug and play connectivity

4096 shades of gray provide depth and density

High sensitivity sensors capture more detail

16 bit images acquisition

New APS CMOS sensor.

Applied in aerospace industry.

Low power consumption.

Extended life time (400,000 times).

Scintillator: An excellent sensor should have a good scintillator, which enhances the x-ray conversion efficiently, and improves light transmission ability.
Scintillators guarantee images low noise,
This is an essential part that guarantees a high quality image.
22lp/mm: It has the ability to identify details, and low x-ray dose. 22lp/mm, meet the requirement of high definition images with high gray scale to detect tiny flaws on early diagnosis tooth top infection.
High efficiency: Time is money, fast acquiring results is important in diagnose.
Only within a few seconds, the x-ray image will show on the monitor.
No more dark room, chemical, or waiting time.
Multi-user solution: The ideal of <HDR for windows> management system is for providing multiuser solution, sharing information of data center. Plug and play connector makes it available for sensor to be transfer from room to room.
Powerful imaging management system:
Powerful multi-functional imaging software <HDR for windows> Maximum support.
Successful application and development of CT imaging software, makes it possible to show early infection.
16 bits image process.
Powerful Image Software: Left: image has less exposure, it seems to be useless.
Right: after software process, the image is very clear.
Left: it is not easy to take images for maxillary molar.
Right: After software process, the image reflect the real information.
Left: Image is not very good
Right: After " Strengthen" the image contrast is much better.
Sensor size# 2 Specification:
Overall sensor size (L x W)

44 x 32 mm

Sensor thickness

Less than 6 mm

Active Area ( L x W)

1600 x 1200 (1.9M)

Total Pixels (L x W)

1604 x 1208

Intrinsic Resolution

22 lP/mm (22.6)

Dynamic Rang

4096

Cable Length

2M (USB cable 2.5M)

DS-Controller Data:
Overall sensor size (L x W)

92 x 66 x 28 mm

PC interface

USB 2.0 (full speed)

Supply Voltage (via USB)

5.0 V (4.25 V min.)

Supply Current (via USB)

500 mA max.

Digitalization

12 bits per pixel

Pixel data rate

2 Mhz

Image Transfer Time

3-4 Seconds
Minimum System Requirement
Processor: Intel 1.2GHz chip or above;

Memory: Above 256M ;

Hard disk: Above 40G;

Interface: USB 2.0;

Display: Resolution 1024 × 758 (15") or above

Operating System: Windows XP/ Vista/ windows 7.
Package comes with:

1) X-Ray sensor size 2
1) DS-Controller Data
1) USB cable
1) Instructional Manual
1) CD with imaging management Software
50) Sensor sleeves
Package size and weigh:

10 x 10 x 4 inches
3 Pounds
Product pictures:

Software Pictures: Sample images taken with the sensor:

I have compared this sensor with others in the market.

This one is by far the easiest, images come out fast and sharp

Excellent quality, Brand NEW.

One year warranty

14 days money back !
