2X High Power Zigbee Module for Wireless Sensor Network WSN

服务费用：物流费物流费物流费调试安装费
发货时间：24小时（有货状态）

点击定制确认订单支付费用 24小时发货

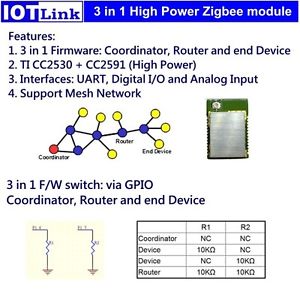

3 in 1 High Power Zigbee module

(I/O switch: Coordinator, Router and end Device)

TI CC2530 + CC2590 Solution, Support Mesh Network

Support High Power, Long range, Serial Port, Digital I/O, ADC

Features:

1. 3 in 1 firmware: Coordinator, Router and end Device

2. TI CC2530 + 2591, High power mode

3. Support Serial Port, Digital I/O and Analog Input interfaces:

4 Digital I/O:

Remote control logic high (MIN 2.4V), low (MAX 0.5V).

Output drives capability 20mA. , Max Voltage 3.3V.

5. Analog Input(ADC): Max Voltage 3.3V, 8bit- resolution

Applications:

1. Home automation, building automation

2. Cable replacement

3. SCADA system, Wireless sensor network, Internet of Things

4. Robot, unmanned carrier

5. PDA, POS, receipt printer, bar code reader, RFID, card reader

6. Power meter, Smart energy, Green power, LED light

Specifications:

1. Solution: TI CC 2530 + CC 2591 (High power)

2. Coverage: 300~500 m (High power) (The actual distance is depend on the real

environment and the antenna. For reference only)

3. Tx. Power: 18 dBm (High power)

4. Rx. Sensitivity (Nominal): -95 dBm (High power)

5. Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4 Kbps

6. Connection: Point to Multi-points

7. UART Interface: TxD, RxD, GND, CTS/RTS

8. RS-232 Interface: D_SUB 9-pin female

9. Standard: 2.4 GHz IEEE 802.15.4 / ZigBee Pro Stack

10. Data rate: 250Kbps

11. Data Bit: 8 bit

12. Frequency: 2.4GHz~2.5 GHz

13. Modulation: DSSS

14. Antenna: RF-Out, U.FL connector

15. Power Supply: +3.3 VDC

16. RF characters:

Receiver Sensitivity: -95 dBm

Frequency Error Tolerance: -50~+50 KHz

Output Power (High Power): +18 dBm

EVM: 30 %

17. Operation Temperature: -20°C to +75°C

18. Dimensions: 25 x 17.5 mm

Remark: All contents are subject to change without notice.

Mesh Network:

Max. 20 nodes @ 1st level under the coordinator, Max. 4 routers in the 20 nodes

Max. 20 nodes @ 2nd level under each router @ level 1, Max. 4 routers in the 20 nodes

Max. 20 nodes @ 3rd level under each router @ level 2, Max. 4 routers in the 20 nodes

Max. 20 nodes @ 4th level under each router @ level 3, Max. 4 routers in the 20 nodes

Max. 20 end devices @ 5th level under each router @ level 4

Max. 4 hoppings between the coordinator to the end device

Package Contents:

High Power Zigbee module x 2 pcs (If you need more units, please advice the quantity. We will offer the new item for you.
