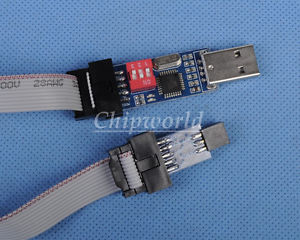

Features: 1. Support USB1.1 or USB2.0 communication; 2. Support WIN98, WINME, WIN2000 WINXP, VISTA, Windows 7 32-bit and 64 - bit operating system; 3. USES the USB port power supply, inner plate with 500 ma self recovery fuse, protect the computer motherboard was accidentally burned; 4. The chip program can be used when the target system itself, power supply, can also use the programmer from the USB port Electricity supply target board, but should guarantee the goal not greater than the current 500 ma, lest cannot normal programming; 5. Programming does not affect the target plate program is run (in system programming); 6. Can block Flash and EEPROM, fuse, read and write operations; 7. Use Atmel company recommended standard IDC10PIN interface; Sealed packaging, finished product packaging using electrostatic bag to ensure the quality of board is not broken before use; 9. Send your ISP 10 p mouth mouth turn 6 p transfer plate and 10 p line programming;
Parameters: 1). The USB interface: type A USB male head 2). The programming interface: standard ISP_10P interface, ISP 10 p turn 6 p adapter plate 3.) product size: 17 * 60 mm 4) mounting holes: no
Directions for use: Insert the USB ASP on the computer USB port, according to computer prompted to install the driver installed after the driver can use programming software for programming the target board.
To dial the code switch to normal use position as shown in figure , The USB ASP programming can be on the target board and board power supply on the target.
If you don't want USB ASP on your target board power supply please send to the following 2
If you want to upgrade your USB firmware ASP please switch to the above all ,So that you can use another programmer for USB ASP programming to upgrade the firmware
For more quantity, please contact me.(My skype: ada-yu2013)
The Standard shipping we provide is non-regiested mail without a tracking.
We provide free shipping with tracking number when your order is over $50.
If your oder is below $50 and you need tracking, please contact me.
