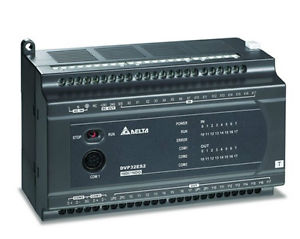

Delta PLC ES2 series DVP16ES200T DC power 16-point 8DI 8DO (NPN transistor) AC power New Free shipping

Features

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.

Specifications

*MPU points: 16 / 20 / 24 / 32 / 40 / 60
*Program capacity: 16k steps
*Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
*Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
*DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
*Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
*New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
*Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
*Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
*Password protection: Password for subroutine, user ID, restriction on trial times
*Highly efficient instruction efficient instruction execution



Update 200 I/O extension points

LD instruction

MOV instruction

DMUL instruction

DEMUL instruction

ES2

1ms

0.54us

3.4us

11.4us

10.3us

ES

6ms

3.8us

18us

150us

55.4us

Note

Update I/O extension module

Basic instruction

16-bit data movement instruction

31-bit multiplication instruction

32-bit floating point multiplication

Model

Item

16ES2

00_

24ES2

00_

32ES2

00_

40ES2

00_

60ES2

00_

20EX2

00_

32ES2

11T

Power supply

voltage

100 ~ 240VAC (-15% ~ 10%), 50/60Hz + - 5%

24VDC

(-15~+20%)

Connector

European standard removable terminal block (Pin pitch: 5mm)

Operation

ES

200

DVP-ES2 starts to run when the power rises to 95 ~ 100VAC and stops

when the power drops to 70VAC. If the power is suddenly cut off, the MPU will continue running for 10ms.

ES

211

DVP-ES2 starts to run when the power rises to 20.4VDC~28.8VDC and

stops when the power drops to 17.5VDC. If the power is suddenly cut off,

the MPU will continue running for 10ms.

Power supply fuse

2A/250VAC

2.5A / 30VDC,

Polyswitch

Power consumption

30VA



DC24V current output

500mA

/

Power supply protection

DC24V output short circuit protection

/

Voltage withstand

1,500VAC (Primary-secondary), 1,500VAC (Primary-PE),

500VAC (Secondary-PE)

Insulation resistance

> 5M Ohm at 500VDC (between all I/O points and ground)

Noise immunity

ESD: 8KV Air Discharge

EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 1KV

RS: 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire shall not be less than that of L, N terminal of

the power supply. (When many PLCs are in use at the same time, please

make sure every PLC is properly grounded.)

Environment

Operation: 0°C~55°C (temperature), 50~95% (humidity), pollution degree 2

Storage: -25°C~70°C (temperature), 5~95% (humidity)

Agency approvals

UL508

European community EMC Directive 89/336/EEC and Low Voltage Directive

73/23/EEC

Vibration/shock immunity

International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &

IEC 68-2-27 (TEST Ea)

Weight (g)

R

377

414

489

554

696

462

/

T

351

387

432

498

614

442

321

Applications

HVAC, molding injection machine, big storage management, packaging machine, precise textile machine, logistic system
