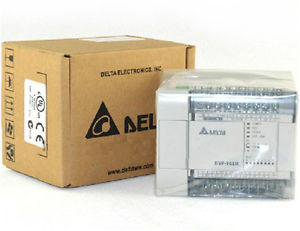

Delta PLC EH2 series Digital extension module DVP32SN11TN 32-point 32DO (NPN transistor) DC power New Free shipping
Features
EH2 series is well
equipped with outstanding operational speed, large programming capacity and
built in application and communication instructions, multiple special extension
modules and function cards, enabling the efficiency of the MPU to be utilized
to its fullness.
Specifications
*MPU
points: 16 / 20 / 32 / 40 / 48 / 64 / 80
*Max. I/O points: 512
*Program capacity: 16K Steps
*Instruction execution speed: 0.24μS (basic
instruction)
*Communication port: Built-in RS-232 and
RS-485, compatible with MODBUS ASCII / RTU communication protocol
*Data register: 10,000 words
*File register: 10,000 words
*High-speed pulse output:
20-point and 32-point models support 2-point
200KHz pulse output (Y0, Y2); 40-point models support A/B phase 200KHz pulse
output (Y0, Y1)(Y2, Y3) and 2-point 200KHz pulse output (Y4, Y6).
*Built-in 4 groups of hardware high-speed
counters
Standard
Hardware high-speed counter
1 phase 1
1 phase 1
1 phase 2
2 phase 2
group
bandwidth
group
bandwidth
group
bandwidth
group
bandwidth
6
10KHz
2/2
200KHz/20KHz
2/2
200KHz/20KHz
2/2
200KHz/20KHz
Model
Items
16EH
00_2
20EH
00_2
32EH
00_2
32EH
00_M2
40EH
00_2
48EH
00_2
60EH
00_2
64EH
00_2
80EH
00_2
Power supply
voltage
100 ~ 240VAC (-15% ~ 10%);
50/60Hz + - 5%
Fuse capacity
2A/250VAC
Power
consumption
50VA
60VA
80VA
DC24V current
output
500mA
Power supply
protection
DC24V output short circuit
protection
Voltage
withstand
1,500VAC
(Primary-secondary), 1,500VAC (Primary-PE),
500VAC (Secondary-PE)
Insulation
resistance
> 5M
Ohm at 500VDC (between all I/O points and ground)
Noise immunity
ESD: 8KV
Air Discharge
EFT:
Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V
Damped-Oscillatory
Wave: Power Line: 1KV, Digital I/O: 1KV, RS: 26MHz ~
1GHz, 10V/m
Grounding
The
diameter of grounding wire shall not be less than that of L, N terminal of
the
power supply. (When many PLCs are in use at the same time, please
make sure every PLC is
properly grounded.)
Operation/
storage
Operation:
0 °C ~55 °C (temperature), 50~95% (humidity), pollution degree 2
Storage: -25 °C ~70 °C
(temperature), 5~95% (humidity)
Vibration/shock
resistance
International
standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 &
IEC 68-2-27 (TEST Ea)
Weight (g)
R
500
520
652
644
710
748
742
836
948
T
480
500
612
644
675
688
742
756
848
Input
Point
Spec
Items
Two
Differential
inputs (200kHz)
24VDC single common port
input
200kHz
20kHz
10kHz
Input wiring type
Independent
wiring
Change wiring from S/S to
SINK or SOURCE
Input indicator
LED display; light on = ON,
light off = OFF
Input voltage (+ - 10%)
5~24VDC
24VDC
Input point configuration
#1
#2
#3
#4
Input impedance
4.7K Ohm
4.7K Ohm
3.3K Ohm
4.7K Ohm
Active Level
Off à On
> 1mA (5V)
> 4mA (16.5V)
> 6mA (18.5V)
> 4mA (16.5V)
On à Off
< 0.4mA (2V)
< 1.5mA (8V)
< 2.2mA (8V)
< 1.5mA (8V)
Response time #5
Off à On
< 150ns
< 150ns
< 3.5us
< 8us
On à Off
< 3us
< 3us
< 20us
< 60us
#1: The frequency of
differential input points X0, X1, X4, and X5 on DVP32EH00M2 is 200kHz.
#2: The frequency of
input points X0, X1, X4, and X5 is 200kHz. The frequency of input points X10,
X11, X14 and X15 on DVP40/60EH2 is 200kHz.
#3: The bandwidth of
input points X10, X11, X14, and X15 is 20kHz (except for input points on DVP40/60EH2).
#4: The bandwidth of
the input points other than the high-speed input points listed above is 10kHz.
#5: Input points X0 ~ X7and
X10 ~ X17 can conduct 10 ~ 60ms digital filter adjustment.
Output
Point
Spec
Items
Two
differential
outputs
Single
common port
transistor output
Single
common port
relay output
Low speed
High speed
Max. frequency
200kHz
10kHz
200kHz
Load ON/OFF control
Output indicator
LED display; light on = ON,
light off = OFF
Minimum load
/
2mA/DC power
Working voltage
5VDC
5 ~ 30VDC
< 250VAC,
30VDC
Insulation
Line Driver
Photo coupler isolation
Magnetic isolation
Maximum
load
Resistive
< 25mA
0.5A/1 point (4A/COM)
2A/1 point (5A/COM)
Inductive
/
12W (24VDC)
#1
Lamp
/
2W(24VDC)
20WDC/100WAC
Max. output response
time
0.2us
OffàOn: 20us
OnàOff: 30us
0.2us
10ms
#1: Life curves
Applications
High-speed 3-axis
servo welding machine, high-speed cutting machine, bar feeder, distributed
monitor system in production line.
