SKU: VBS3T-075   |   3/4" Stainless Steel (316) 3-Way Ball Valve - T Port, With Mounting Pad 1000PSI

Features

* Standard Port 1000 WOG * ISO-5211 Mounting pad for actuator * S.S. 316 Investment casting Body * Suitable for full range of liquids and gas * Pure teflon seals and seats * Temperature range: -60 to 450 degree Fahrenheit * Low operation torque * 100% individually tested * Blow-out proof stem * Female X Female NPT threaded ends to ANSI B1.20.1 * Heavy duty locking handles with Blue vinyl insulator

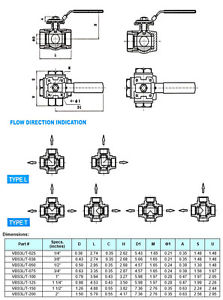

Dimensions Table

Part #

Size

D

L

C

H

D1

M

?

A

S

U

VBS3L/T-025

1/4"

VBS3L/T-038

3/8"

VBS3L/T-050

1/2"

0.50

2.95

0.35

2.68

4.57

1.65

0.24

0.39

1.30

1.48

VBS3L/T-075

3/4"

0.63

3.35

0.35

2.87

4.57

1.65

0.24

0.39

1.56

1.67

VBS3L/T-100

1"

0.79

3.94

0.43

3.27

5.98

1.97

0.28

0.47

1.97

2.05

VBS3L/T-125

1 1/4"

0.98

4.53

0.43

3.50

5.98

1.97

0.28

0.47

1.99

2.26

VBS3L/T-150

1 1/2"

1.26

4.88

0.55

3.82

7.36

2.76

0.35

0.63

2.24

2.44

VBS3L/T-200

2"

1.50

5.79

0.55

4.17

7.36

2.76

0.35

0.63

2.56

2.95

Material List

Description

Material

1

BODY

CF8/CF8M

2

GLAND NUT

304

3

FLOW INDICATION PLATE

ALUMINUM

4

STEM NUT

304

5

LOCKING

304

6

HANDLE

304

7

PLASTIC COVER

PLASTIC

8

STEM

304

9

STEM PACKING

PTFE

10

STEM SEAL

PTFE

11

CAP

CF8/CF8M

12

BODY SEAL

PTFE

13

BALL

CF8M

14

BALL SEAT

R-PTFE

15

BLIND CAP

CF8M

16

BLIND CAP SEAL

PTFE

* Information provided here may change without notification * Other sizes and range are available on special order
